Description
Features and Benefits

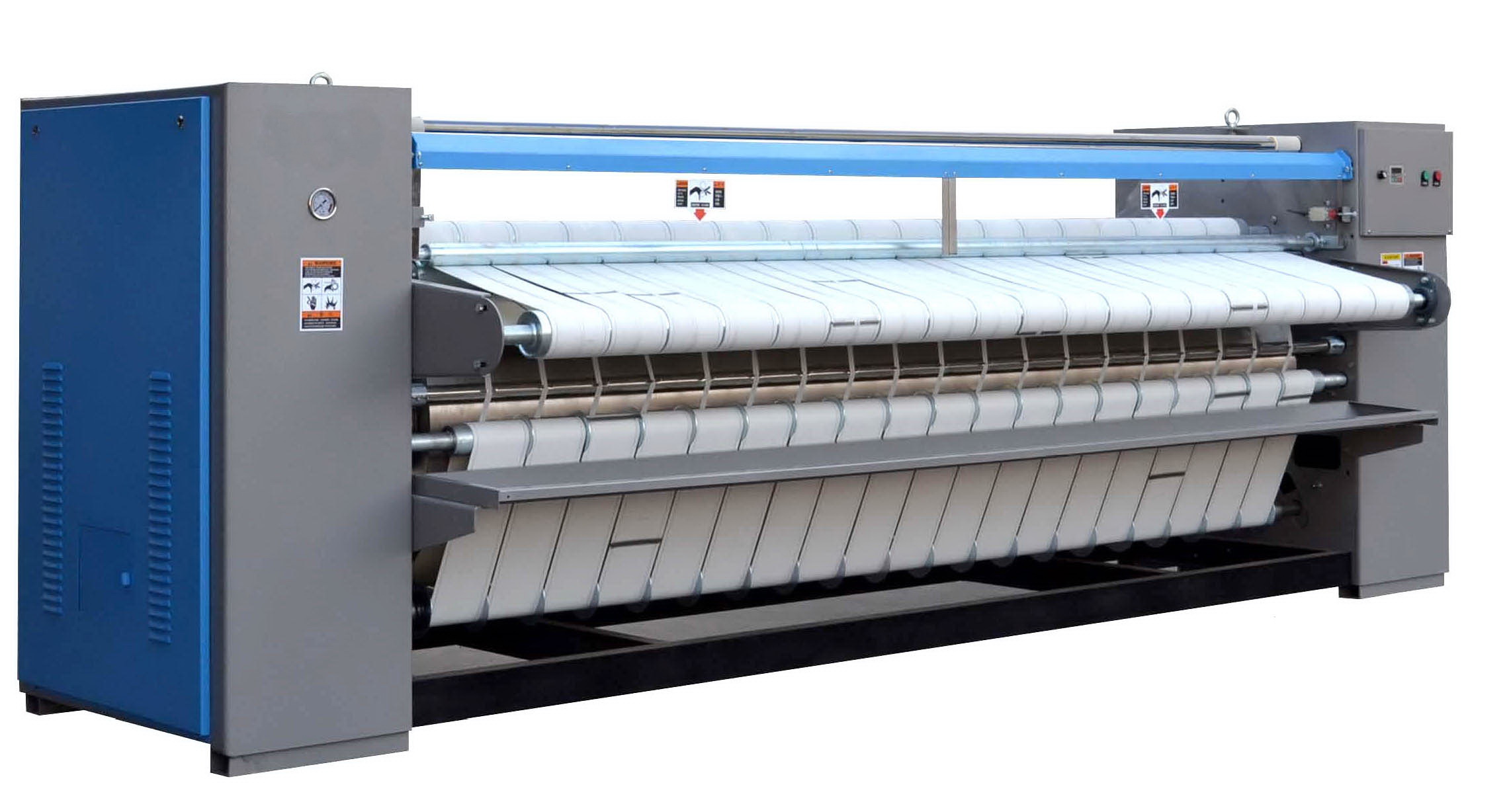

- Single 800mm diameter ironing roll made of SS304 stainless steel with designed large linen contact surface
- Available in 2500mm, 2800mm, 3000mm and 3300mm suits various application
- Compact return feed design (feed and collection at same side) allows installation against the wall and require less operators
- Feeding and discharge at ergonomic height for most operators
- Variable speed frequency inverter to match different kind of linens
- Automatic tensioning system to keep the belts always in optimum condition for best finishing quality after long operation
- Safety guard panel at the feeding entry to stop the machine when activated
- Easy access emergency stop button in case of emergency situation
- Safety steam pressure relief valve avoid accident due to steam over-pressure
- Effective steam trap fully utilize the steam energy thus reduce energy cost
- Discharge area with collection board
- Heavy duty side panel structure ensure durability in harsh environment
- Simplified chain drive mechanism for less maintenance
- Oil lubrication system for easy maintenance of main bearings
